How To Choose A Heavy-Duty Bridge Mill For Large-Scale Precision Machining

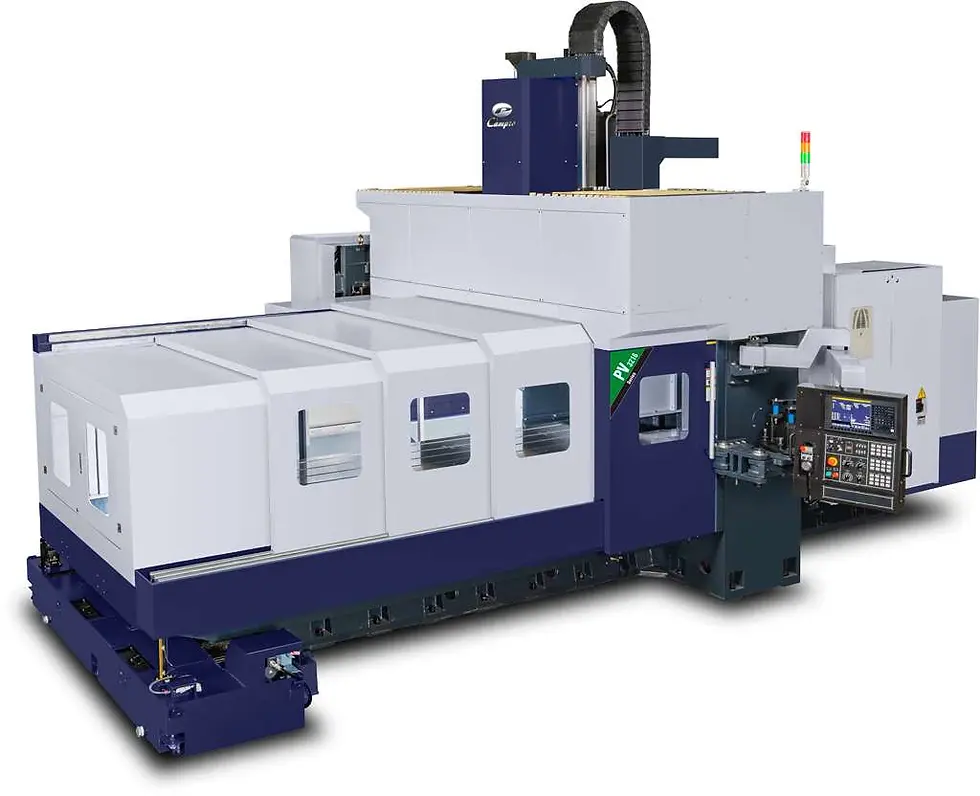

A heavy-duty bridge mill is often the backbone of large-scale precision machining operations, where massive workpieces, tight tolerances, and long machining cycles leave little room for structural weakness or instability. The way a bridge mill is built, its core structure, rigidity, and ability to maintain stability under heavy cutting loads directly determine machining accuracy, surface finish, and overall productivity.

These performance demands vary significantly across industries, as each places different stresses on machine design and capability. Recognizing how structural integrity, vibration control, and application-specific requirements influence real-world performance is essential before making an informed investment decision. This foundation helps frame the critical considerations involved in selecting  and buying a bridge mill suited for high-precision, large-scale operations.

Critical Selection Criteria For Heavy-Duty Bridge Mills

Heavy-duty bridge mills are selected based on how effectively their mechanical systems manage force, motion, and heat during extended machining operations. Performance depends on coordinated interaction between load-bearing elements, motion components, spindle assemblies, and control feedback rather than on individual specifications alone. Evaluating how these systems respond to continuous stress, positional correction, and environmental variation helps manufacturers determine whether a machine can sustain accuracy, protect tooling, and maintain output consistency in demanding production environments.

Understanding The Core Structure Of A Heavy-Duty Bridge Mill

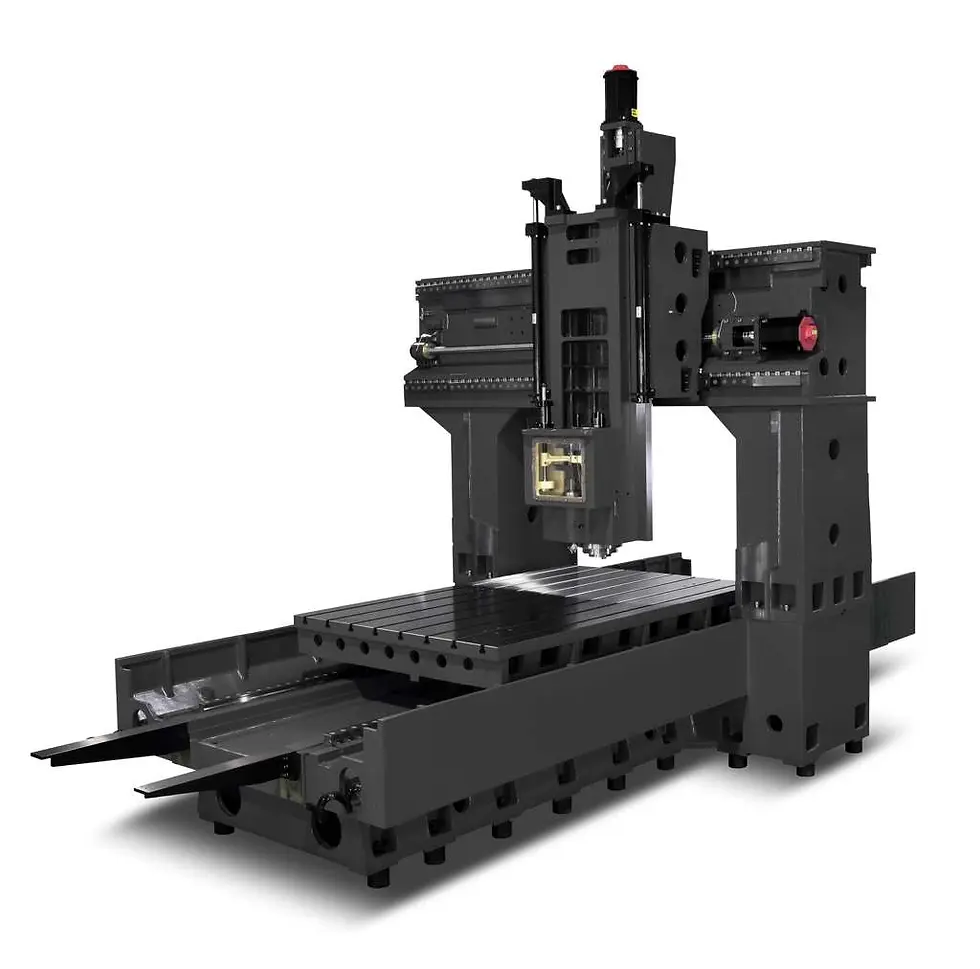

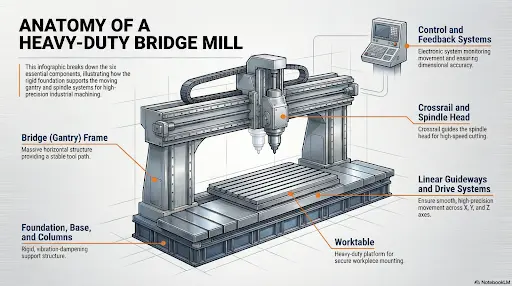

Bridge (Gantry) Frame

One of the most important characteristics of a bridge mill is the presence of a strong bridge or gantry that spans the worktable. This bridge supports the spindle assembly and prevents it from sagging during heavy cuts. It is typically made of good-quality cast iron or steel to maintain accuracy and prevent vibration.

Columns

Vertical columns hold up the bridge and guide the up-and-down (Z-axis) movement. Their strong, heavy design helps keep the machine properly aligned and absorbs cutting forces, which is especially important during long machining operations.

Crossrail

Hanging between columns, a cross-rail provides vertical adjustability of the spindle head, heavy-duty models will typically require hydraulic/mechanical clamping of the cross-rail to ensure maximum rigidity when positioned.

Spindle Head

The spindle head contains the spindle motor and bearing assemblies along with the tool interface. It is designed to provide high torque at low speeds, which enables deep cuts in very hard materials and maintains accuracy.

Worktable

The worktable holds large and heavy parts securely. Its flat, precision-finished surface, along with T-slots or pallet systems, helps fix the workpiece firmly in place. Strong linear guideways ensure smooth and stable X-axis movement, even when carrying heavy loads.

Linear Guideways And Drive Systems

Heavy-duty bridge mills use oversized linear guideways or box ways combined with ball screws or rack-and-pinion drives. These systems ensure accurate positioning, load-bearing capacity, and long-term durability.

Control And Feedback Systems

Modern bridge mills feature CNC controls with high-resolution encoders and feedback systems. Such systems provide precise motion control, repeatability, and compensation for thermal or mechanical variations.

Foundation And Base

The base supports the machine structurally and evenly distributes the machine's weight. A properly designed foundation helps to suppress vibration transmission and preserve machine geometry.

Key Factors To Consider In Machine Rigidity And Stability

Structural Mass And Geometry

Structural mass alone does not guarantee rigidity; how that mass is distributed is equally critical. Proper geometry ensures that the cutting forces are directed along the shortest straight path, which reduces bending stresses. Thick walls, deep ribbing, and closed-frame designs improve stiffness by preventing localized flex.

Material Selection

The base material determines how the machine reacts to cutting forces and dynamic loads. Cast iron is a vibration-absorbing material due to its graphite composition, making it suitable for rigid structures. Steel frames that are welded together are strong but require stress relief to prevent distortion. Modern materials such as polymer concrete are better at vibration damping while maintaining stiffness, particularly in interrupted cutting operations.

Guideway Design

Guideways control the transmission of forces during axis movement. Box ways have a large contact area, which enables them to support heavy loads with little deflection and naturally damp vibrations. Linear guideways emphasize speed and precision but depend largely on size and preload. An improper choice of guideway system may cause chatter, uneven wear, and loss of precision during continuous cutting operations.

Spindle And Bearing Configuration

The spindle assembly must resist cutting torque as well as axial force without deflection. A spindle with large diameters provides stiffness, while precision bearings ensure proper alignment. The spindle support and bearing preload affect the distribution of forces during machining. Insufficient spindle support may accentuate vibration, reduce surface quality, and hasten tool wear, even with a strong machine structure.

Vibration Damping And Control

Damping focuses on energy absorption rather than force resistance. Without effective damping, even rigid structures can resonate at certain cutting frequencies. Materials, structural design, and auxiliary damping systems work together to suppress chatter. Controlled damping stabilizes cutting conditions, protects tooling, and enables consistent surface quality, especially in operations involving interrupted cuts or variable material hardness.

Thermal Stability

Thermal growth from machining will lead to uneven expansion, which will negatively impact geometric accuracy. The effect that thermal growth has on positional accuracy can be counteracted by the use of symmetrical machine components. Proper lubrication and cooling will help to control and limit localized heat build-up. Machines without thermal stability may suffer from positional drift throughout long machining cycles. The ability to keep a machine's rigid body stable will ultimately lead to keeping it dimensionally stable during continuous production processes.
